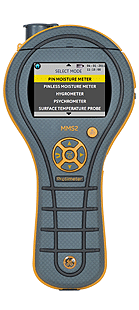

The Protimeter MMS2 (Moisture Measurement System) is a complete moisture measurement device for use in many different building related industries. The Protimeter MMS2 represents the latest Protimeter technology in one intuitive, robust and fully functional design.
Easy to use instrument
Full building moisture diagnostics
Fast responding hygrometer speeds up building surveys
No need to plug in multiple accessorie
Large colour display
Pin moisture measurement
Non-invasive moisture measurement
Fast responding relative humidity and temperature measurement
Equilibrium humidity measurement in concrete floors
Non-contact IR temperature measurement
If you’re surveying buildings, inspecting a home, drying a building after a flood, or testing
concrete moisture for a flooring application, the Protimeter MMS2 is the solution for you.
Four-in-one Moisture Measurement System
The Protimeter MMS2 combines pin type, non-invasive modes of measurement together with a thermo-hygrometer and a laser IR temperature thermometer in one state-of-the-art instrument.
Read an introduction to the Protimeter MMS2
The measure mode utilises two pins to diagnoses the extent of moisture intrusion for damage assessment and monitor drying out of building structures. The measure mode provides actual percent moisture content (%WME) in a wide range of building materials. Sub-surface %WME measurements can be obtained by using deep wall probes to gather moisture levels deep within a wall cavity or structure.
Search Mode (non-invasive)
The search mode detects sub-surface moisture utilising pinless radio frequency finds moisture up to 3/4 in (19 mm) below surface. As this moisture detection mode is non-invasive, searches behind ceramic tiles, fine finishes, water stains, tile and vinyl floor coverings, wood, drywall, plaster, masonry, concrete and concrete block.

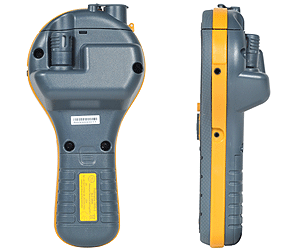

The flat sensor on the underside of the instrument is held against the wall or floor to obtain a relative reading. Surface moisture does not adversely affect the Search mode reading.
Hygrometer Humidity Mode
The Protimeter MMS2 incorporates a compact thermohygrometer sensor, short QuikStick. The compact sensor provides a fast response measures from 0-100% rh can be used as a hygrometer to measure specialist humidity measurements. Whatever the Protimeter MMS2 measures with the QuikStick, the instrument calculates and displays the dew point temperature essential for condensation risk assessments.

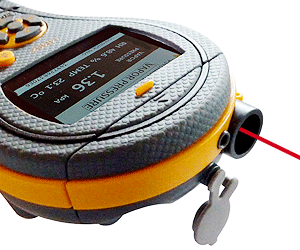

Remote Surface Temperature Measurement
The Protimeter MMS2 features an infra-red sensor built into the top of the instrument for non-contact surface temperature measurments. An intergrated laser pointer indicates the position of measurment for clarity. The surface temperature is displayed together with the prevailing dew point temperature and difference between the surface and dew point temperatures.
As Protimeter's Premier dealer, we are proud to offer an upgraded no quibble 2-year warranty on this instrument. Click for more information.
|Moisture Measurement Range
- Pin measurement
8% to 99% WME
0 - 999 REL (relative)
|Depth of Measurement
- Pin measurement
up to 12.7 mm
up to 19 mm
|Infrared IR Surface Temperature||
-4°F to 176°F (-20°C to 80°C)
0% to 10% RH, ±3% RH
10% to 90% RH, ±2% RH
90% to 100% RH, ±3% RH
32°F to 122°F (0°C to 50°C)
|Data Storage||Store up to 8,000 results
with date and time stamp
|Display||Large digital Colour LCD|
|Power||9V battery (included)|
|Dimensions (mm)||190.5 x 94 x 56|
