The Protimeter Moisture Measurement System (MMS) is a complete moisture measurement device for use in many different building related industries. The Protimeter MMS combines pin type and non-invasive modes of measurement together with a thermo-hygrometer in one state-of-the-art instrument.
4 Instruments in one
Measure mode - detect surface moisture via two-pins
Search mode - detects moisture below wall / floor coverings
Built-in hygrometer - relative humidity, dew point and temperature
Clear large LCD display
Simply to use - only 4 buttons

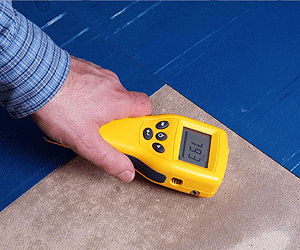

By selecting search mode and holding the instrument against building materials such as walls, the user obtains a qualitative indication of the moisture level beneath the surface or under a floor covering.
By selecting Measure mode and pushing two needle electrodes into the surface of the wood or masonry under investigation, the user can obtain, respectively, the actual moisture content or the material's wood moisture equivalent (WME) value. Additionally by utilising deep wall probes, further information can be gathered about moisture levels deep within a wall cavity or structure.

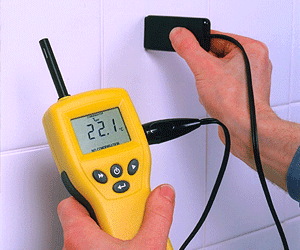

The Protimeter MMS can be used as a hygrometer to measure the relative humidity, dew point, mixing ratio (grains per pound/parts per million by weight) and ambient temperature are shown at the touch of a button.
The Hygrostick sensor that is supplied with the instrument can also be embedded in solid floors and walls to obtain a material's equilibrium relative humidity (ERH) value.
When surface temperature measurements are required, the Protimeter MMS can fitted with the surface temperature sensor making this instrument especially suitable for condensation risk assessment and diagnosis.
As Protimeter's Premier dealer, we are proud to offer an upgraded no quibble 2-year warranty on this instrument. Click for more information.
|Moisture Measurement Range
- Pin measurement
8% to 99% WME
0 - 1000 REL (relative)
|Depth of Measurement
- Pin measurement
up to 12.7 mm
up to 19 mm
30% to 40% RH, ±3% RH
41% to 99% RH, ±1.5% RH
32°F to 122°F (0°C to 50°C)
|Data Storage||Store up to 1,000 results with date and time stamp from all instrument functions|
|Power||2 x AA (included)|
|Dimensions (mm)||180 x 70 x 49|
www.Damp-Meter-Direct.co.uk is run by Survey Express Services - the UK's largest approved dealer of Protimeter moisture meters
